50 Hole Plugs
It consists of 50 domed blanking plugs made of plastic to plug unused holes in the beams of the mezzanine. They snap into the holes easily providing a snug fit. Domed blanking plugs are available in black or white.
Please note! You may see extra products or the colour of your selection may not match the images shown. This is because we use real photos from our customers to maintain authenticity and transparency.
Reference: 30401-NP

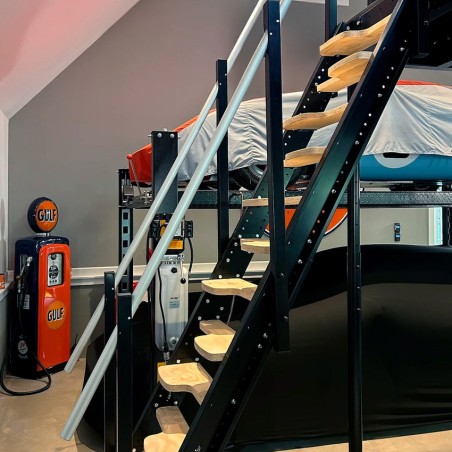

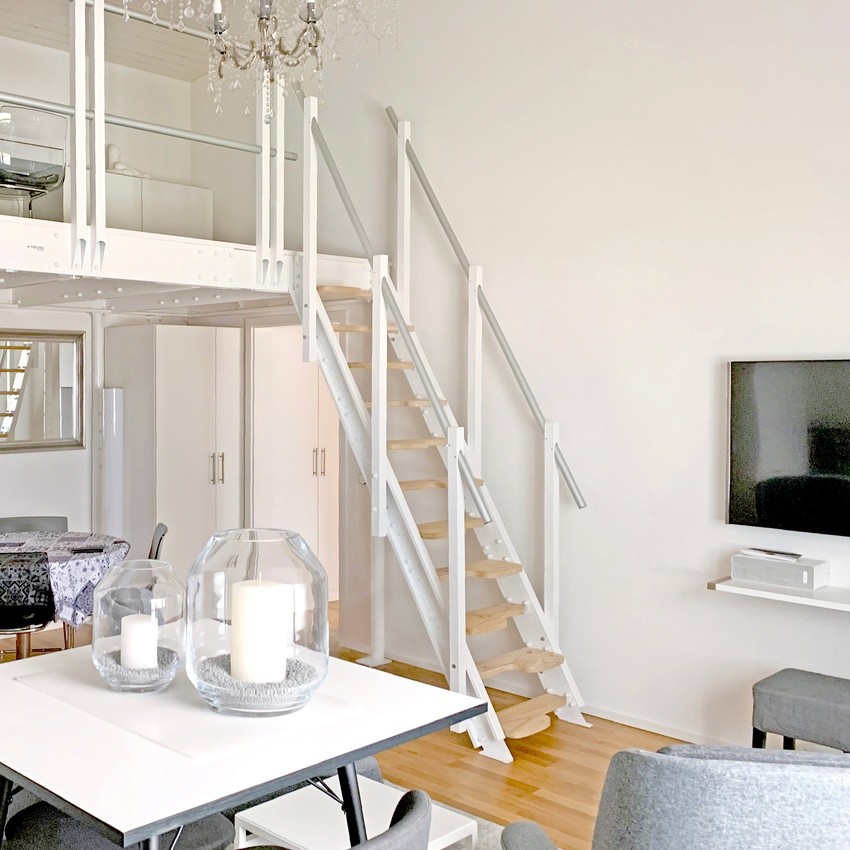

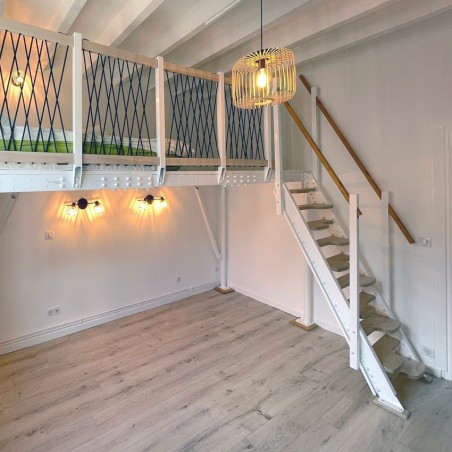

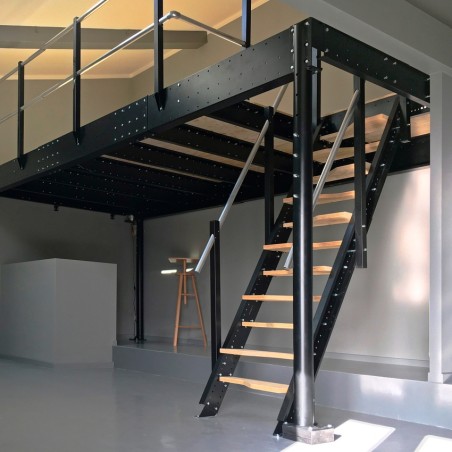

The 62° alternating tread stairs, made of high quality steel and wooden rungs, are perfect for small spaces.
The offset steps of these stairs are carefully designed to offer safer and more comfortable ascent and descent, distributing the weight evenly and providing stability with every step.
The advantage of the 62° alternating tread stairs is that, thanks to the design of the offset steps, the setback of the stairs is reduced to a minimum. In other words, each step has a wider part that allows the foot to rest fully on it and to reach a greater degree of inclination. This feature makes it possible to make the best use of space, guaranteeing a suitable solution for every situation.
You can fold or lift the stairs upwards, making it easier to pass and move around underneath it. With the electric kit you can control the movement of the stairs up, down and stop at any time using the remote control. In addition, the system is totally safe, as the motor locks in any position even without power, making it impossible for the ladder to fall.

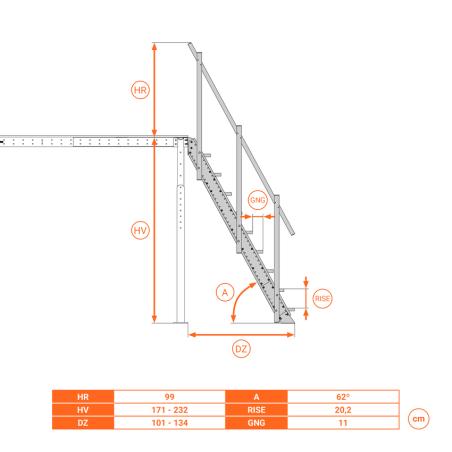

The stairs are height-adjustable, so, they are compatible with any Tecrostar mezzanine and other surfaces, provided that the HV matches that of the mezzanine to which it is to be anchored.
For greater versatility, the stairs adapt to different space configurations. They can be placed on either side of the mezzanine, either perpendicular or parallel to the beam. You can also use a stair landing to make access easier.
You can install them inside the mezzanine using the beam for interior stairs of the same range as the structure.
The products can be located indoors and outdoors taking into account some recommendations.
The material will be delivered at street level (curbside delivery) by an external transport company.
Tecro Space S.L. is not responsible of the use or inadequate installation of the product.
Our technical team can facilitate you the task. Send us a sketch with your idea and we will develop 2d or 3d plans in order to see how it will be. Click here to contact us.
We do not currently offer an on-site measurement service. However, we recommend you explore the Mr Assembler website, where you can find assemblers who do offer this service. In addition, their platform allows you to hire an assembly service for the products you need.
You can make aesthetic modifications, but any structural modification non approved by Tecrostar will be under customer’s responsibility.
Tecrostar products are manufactured with the most suitable materials for the proposed technical solutions, combining wood, steel and top quality aluminium.
TECRO has earned certification from the AEM, the federation of Spanish materials handling. We have also received a Gold Medal Award of Merit from the INPEX (Invention and New Product Exposition), the top award for innovation at the largest Invention Exposition in the USA.
The stairs can be placed in different positions, increasing the possible configurations
Yes, our stairs are compatible with other ranges, provided that the height of the staircase matches the height of the mezzanine or surface to be reached.
In our online shop you will find a wide range of staircase models with different heights. This allows you to choose the one that best suits your needs and specific height.
If you wish to install a staircase in XL mezzanines, it is necessary to purchase the Adapter for accessories, which will allow you to integrate it properly.
In TecroStar there are different types of staircases: some for private use, usually located in small spaces, some for general use, wider and more comfortable, suitable for workplaces or commercial premises.
Defining the intended use of the staircase is basic in most standards. Staircases are generally classified as service or private stairs, as well as general or public use stairs, the latter being more demanding.
There are in place many regulations for staircases in the different countries in which TecroStar is present. Therefore, it is difficult to determine whether a staircase type complies with a particular normative.
Our stairs are designed by defining the general criteria for each type of staircase, so that these are well defined and checked against those in the regulations:
However, some regulations also refer to very specific construction parameters and details:
There are very few international standards that cover the design of staircases, one of which is ISO 14122 "Safety of machinery. Permanent means of access to machinery and industrial installations", whose criteria are suitable for our category EASILY ACCESSIBLE STAIRS . For all other regulations, the general criteria should be verified, which can be easily compared with the data in the Technical Data Sheets.
If you have a specific regulation that your staircase must comply with, you can ask us and we will try to help you in your decision.
The stairs include the maximum number of steps that are required in their maximum heights. The more the height is reduced, the less steps will be installed. However, you can acquire additional steps as spare parts, the number of steps is designed according to the inclination of each staircase though. An excessive number of steps would reduce the going available for treading, specially important when going down.
Yes. They can be installed on a surface that is not a Tecrostar surface.
Wall anchors for concrete or brick are used to fix staircases to walls made of these materials.
The customer must bear in mind that they are responsible for the strength of the joint and structure to which they are anchored.

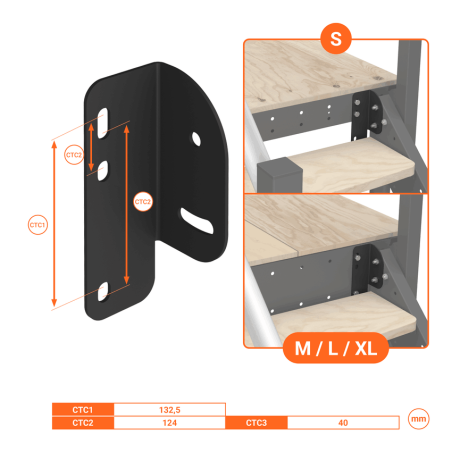

If you need to anchor the stairs to a structure that is not a Tecrostar structure, see the following details about the anchors:
Anchor B: References that have this anchor: 35200, 35300, 31700.
The anchor that connects the ladder to the mezzanine can be fastened with 2 or 4 screws. If you opt for the 2-screw configuration, the ladder will have the ability to pivot upwards. It is important to note that in both cases the ladder retains the same strength.
This adjustment is available on all Tecrostar straight flight ladders.
With the Electrical stair lift kit compatible with Japanese, straight and side ladders, you will be able to lift your ladder in complete safety and hide it at the height of the mezzanine.
Each model of stairs has an inclination and it cannot be changed unless otherwise stated. You must choose the stairs that best suit your needs.
Yes, the railing of both sides of the stairs is removable and, therefore, it can be taken off. However, we recommends to install it for security and because they provide rigidity to the stairs as well.
On the other hand, the stairs include the railing; it is not possible to acquire them without the railing.
You can find an fitter near you on misterassembler.com. This website puts fitters and customers in contact, so the price and the responsibility of the installation is the fitter's. This website is not associated with Tecrostar.
Tecrostar can provide you with an estimate of the cost of assembly that depends largely on the distance between the assembly team and the installation site and the type of service hired (prior visit and measuring, delivery service and transport of goods to the site).
In any case, this estimate must be agreed between the client and the fitter.
The mezzanine floors are packed and shipped by an external agency in a lorry provided with a lifting platform, so that the boxes can be unloaded on the ground. The order will be delivered at street level to the address specified by the customer.
If there are access restrictions, there could be additional costs due to the necessity of transferring the merchandise to a smaller vehicle.
In order to deliver mezzanines XL, the delivery location should be accessible to a truck/long trailer (maximum mass admitted up to 36t). Should you think there is any kind of restriction, please contact us. The customer should take care of the merchandise unloading process. That unloading should be made from the lateral sides of the truck (this kind of truck does not have a back liftgate). We deliver the product packed with pallets at the bottom, so its unloading should be made preferably with a forklift.
At Tecrostar, we offer four types of boxes that are carefully designed to adapt to and protect the products. Depending on the products in your order, you will receive one or the other.
Mezzanine floors in the S, M and L range are shipped in the same type of box. The S and M mezzanines require one crate for each shipment. The L range, however, normally requires two crates.
The XL mezzanines are shipped in two boxes; one for the wooden elements and one for the steel elements.
The rest of the products (stairs, handrails and other items) are shipped in smaller boxes.
Box for S, M and L
2390
1125
550
Wooden XL Box
3050
1205
710
Iron XL Box
2450
990
735
Small items Box
2350
320
230
*All mezzanine crates are shipped palletised.
Our logistics department packs the products with great care to optimise the space available inside the boxes. Sometimes, smaller products may share a box with mezzanines. In this way we make the most of the space and ensure that everything fits correctly.
Don't be alarmed by the total weight of the product, the components are light and manageable, so you can move them easily and take them up in the lift.The heaviest components are the primary beams from the L Range (39 kg), the rest of the ranges are considerably lighter (12kg).The floor panels are very light and fit in any lift. No component is more than 2.4m long and therefore, fits in most lifts.
However, it is important to mention that in the case of the XL range, some components may be a little heavier.
Sometimes, the carrier cannot access to point of delivery due to an extremely narrow street or any other difficulty. In such cases, the carrier cannot do the delivery with the usual truck and he may need to use a different vehicle or extra support.
If the carrier considers that the point of delivery is complicated, request a quotation. If you don’t inform in advance that the access is complicated, the delivery will be paralysed until you pay the extra cost.
It consists of 50 domed blanking plugs made of plastic to plug unused holes in the beams of the mezzanine. They snap into the holes easily providing a snug fit. Domed blanking plugs are available in black or white.
The Side Stairs are a practical solution that allow safe and comfortable access to different heights. They can be adjusted to different degrees of inclination depending on the needs of each project and the space available.
The Side Stairs are a practical solution that allow safe and comfortable access to different heights. They can be adjusted to different degrees of inclination depending on the needs of each project and the space available.
The Truckle Bed Stairs ease the access to the structure and can be used independently in different locations. These stairs are not height-adjustable.
Made of high-quality materials and easy to install.
-25%
The Industrial Stairs with 63° offset rungs, made of steel, are designed to optimise small spaces and make the most of the available surface area.
The offset steps are carefully designed to offer a safer and more comfortable ascent and descent, distributing weight evenly and providing stability with every step.
The Industrial Stairs with 63° offset rungs, made of steel, are designed to optimise small spaces and make the most of the available surface area.
The offset steps are carefully designed to offer a safer and more comfortable ascent and descent, distributing weight evenly and providing stability with every step.
The Straight Stairs are the perfect solution for reduced spaces thanks to their versatility and ease of installation. With the option to adjust its height, these become the best choice to optimise the use of the available space in homes, work areas, garages, warehouses and commercial premises.
The boat stairs are made of top quality pine plywood with a natural finish. They have an inclination of 70° and two handrails that aid ascent and descent.
The wooden ladder is made of high-quality beech wood. The inclination of the ladder is 80º. The versatile design and easy installation of this product make it perfect for any environment.
Made of high quality steel, the Tecrostar spiral stairs are a winning choice if you are looking for a sturdy and safe staircase able to fit in tight spaces. It guarantees a comfortable user experience.
In addition, it includes a side railing and steel rungs that offer a firm grip when ascending and descending.
