Reference: 43201-AAS
The Safety Pallet Gate, also known as Anti-fall tilting barrier, is a collective security and protection element. Its use is mandatory according to the labour risk prevention regulations. It avoids the people falling while lifting loads to a mezzanine or to any other level.
It works as a rocker: the merchandise is deposited in a position using a forklift and taken away in the other position from inside the mezzanine. This way, one of the railing sides is always closed, avoiding falling to a different level with no need to use harness.

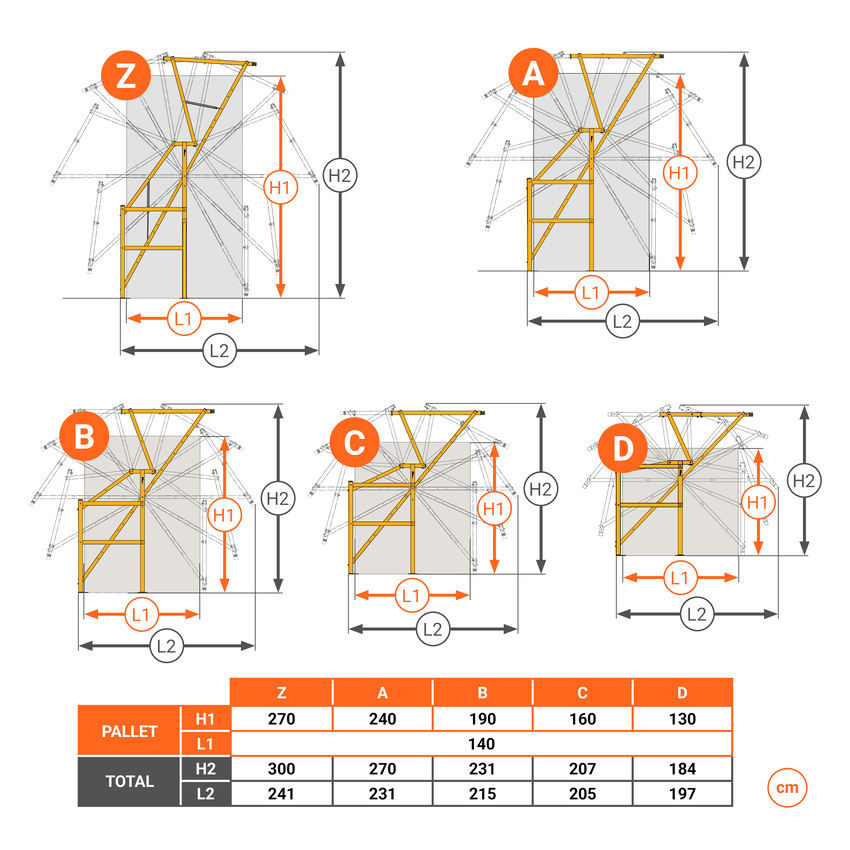

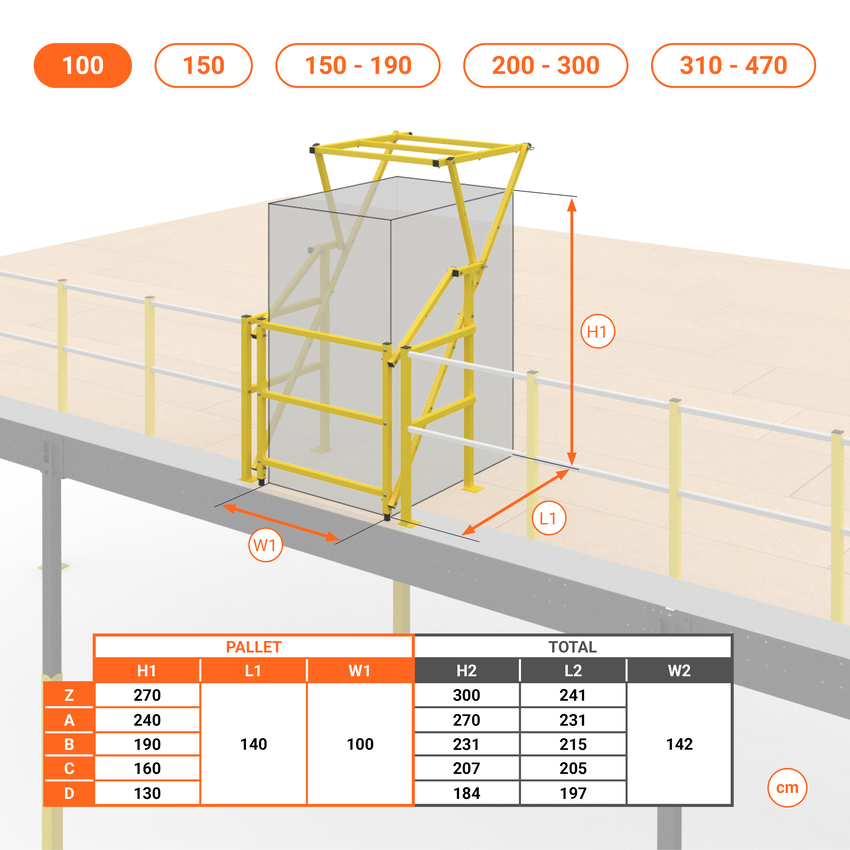

The dimensions of the maximum load to deposit and the dimensions of the gate itself depend on the model, as shown in the main image.
The Safety Pallet Gate or Anti-fall Tilting Barrier is an ideal protective element. It is designed to be used in industrial structures. It allows to move heavy loads from the lower surface of the mezzanine to the upper side and vice versa, with a complete safety of movement.
It prevents the fall risk of the material when the merchandise is stacked, thanks to a perimeter protection and to the easy opening and closing system it offers.

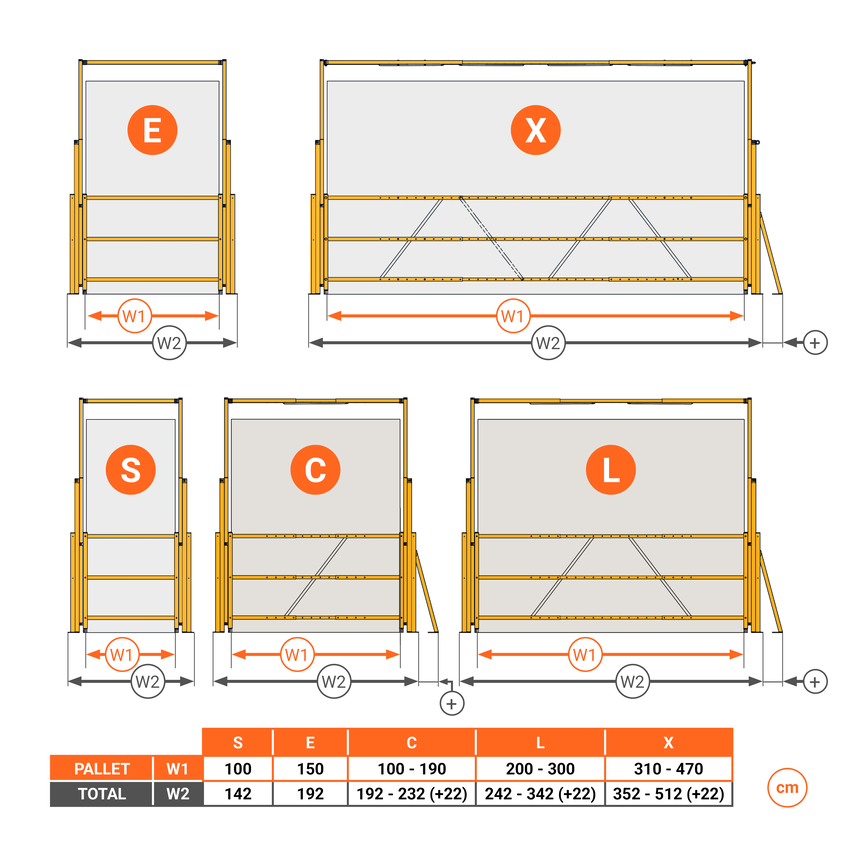

The gates with telescopic widths are adjustable every 10 cm.
According to the standards and ergonomics in different workplaces, the Safety Pallet Gate is ideal for easy handling systems. It enables a maximum availability in the workspace, both in spaces with high ceilings and zones with limited height.
The Safety Pallet Gate is specially designed for its integration with Tecrostar mezzanines and railing, though they can also be placed in a different surface. They are really safe and easy to install.
Check compatibility with other ranges or structures.
The products can be located indoors and outdoors taking into account some recommendations.
The material will be delivered at street level (curbside delivery) by an external transport company.
Tecro Space S.L. is not responsible of the use or inadequate installation of the product.
Our technical team can facilitate you the task. Send us a sketch with your idea and we will develop 2d or 3d plans in order to see how it will be. Click here to contact us.
We do not currently offer an on-site measurement service. However, we recommend you explore the Mr Assembler website, where you can find assemblers who do offer this service. In addition, their platform allows you to hire an assembly service for the products you need.
You can make aesthetic modifications, but any structural modification non approved by Tecrostar will be under customer’s responsibility.
Tecrostar products are manufactured with the most suitable materials for the proposed technical solutions, combining wood, steel and top quality aluminium.
TECRO has earned certification from the AEM, the federation of Spanish materials handling. We have also received a Gold Medal Award of Merit from the INPEX (Invention and New Product Exposition), the top award for innovation at the largest Invention Exposition in the USA.
No, they are not. However, there are other possible combinations between ranges, in which the performance and configuration of the standard product changes (see diagram).
The Railing with safety skirting board XL is the most recommended for installation on other surfaces.
(1) This configuration can be installed, but the height of the Railing would be different. In addition to reducing the height, the Angular Struts should also be changed. Ask TecroStar.
(2) To install this configuration you have to acquire 1 “Adapter for Accessories in Primary Beam XL Kit”, per Railing Post which is going to be installed on the direction of the primary beams of the TXL30, TXL32 and TXL37 Mezzanines.
(3) To use this configuration, the railings are fixed to the front of the floor slab or a different surface.This option is not recommended.
(4) To install this configuration you have to acquire 1 Angular Strut ( as the same range of the mezzanine) per Railing Post. Ask TecroStar.
This is not recommended, as to cover a space with reduced height (i.e.: attics, irregular/low ceilings, etc.)
We recommend installing the Low Railing instead. This particular railing model will allow the height of the railing posts to be adjusted to the client's taste.
That depends. The railing kits are 2 meters long. You will have to calculate how many kits you need.
The steel parts are coated with a highly adherent polyester paint coating using an electrostatic process. The colours and finishes available for the railings are as follows:
The handrail of the railings and stairs are available in aluminium in the following finishes:
The loft bed and rope railings are fitted with handrails made of solid natural beech wood. In the case of the spiral staircase railings, the handrails are available in black polyethylene or black rope.
You can find an fitter near you on misterassembler.com. This website puts fitters and customers in contact, so the price and the responsibility of the installation is the fitter's. This website is not associated with Tecrostar.
Tecrostar can provide you with an estimate of the cost of assembly that depends largely on the distance between the assembly team and the installation site and the type of service hired (prior visit and measuring, delivery service and transport of goods to the site).
In any case, this estimate must be agreed between the client and the fitter.
The mezzanine floors are packed and shipped by an external agency in a lorry provided with a lifting platform, so that the boxes can be unloaded on the ground. The order will be delivered at street level to the address specified by the customer.
If there are access restrictions, there could be additional costs due to the necessity of transferring the merchandise to a smaller vehicle.
In order to deliver mezzanines XL, the delivery location should be accessible to a truck/long trailer (maximum mass admitted up to 36t). Should you think there is any kind of restriction, please contact us. The customer should take care of the merchandise unloading process. That unloading should be made from the lateral sides of the truck (this kind of truck does not have a back liftgate). We deliver the product packed with pallets at the bottom, so its unloading should be made preferably with a forklift.
At Tecrostar, we offer four types of boxes that are carefully designed to adapt to and protect the products. Depending on the products in your order, you will receive one or the other.
Mezzanine floors in the S, M and L range are shipped in the same type of box. The S and M mezzanines require one crate for each shipment. The L range, however, normally requires two crates.
The XL mezzanines are shipped in two boxes; one for the wooden elements and one for the steel elements.
The rest of the products (stairs, handrails and other items) are shipped in smaller boxes.
Box for S, M and L
2390
1125
550
Wooden XL Box
3050
1205
710
Iron XL Box
2450
990
735
Small items Box
2350
320
230
*All mezzanine crates are shipped palletised.
Our logistics department packs the products with great care to optimise the space available inside the boxes. Sometimes, smaller products may share a box with mezzanines. In this way we make the most of the space and ensure that everything fits correctly.
Don't be alarmed by the total weight of the product, the components are light and manageable, so you can move them easily and take them up in the lift.The heaviest components are the primary beams from the L Range (39 kg), the rest of the ranges are considerably lighter (12kg).The floor panels are very light and fit in any lift. No component is more than 2.4m long and therefore, fits in most lifts.
However, it is important to mention that in the case of the XL range, some components may be a little heavier.
This connector is used to adapt the accessories to the primary beam of the Mezzanine XL. Thanks to this piece, the elements that are added to the mezzanine are fixed with greater solidity. The adapter can be used to include both the railing posts as well as to join the stairs and the stair landing to the primary beam.
The stability column is an inclined bar that is placed in a column of the mezzanines. It ensures the lateral stability in a determined side and direction.
It consists of a telescopic extensible bar that is joint to the column in its upper side. The bar is fixed to the floor at a distance of 1,3 metres from the column base plate removing, this way, the movement of the mezzanine in the side where it is installed.
The extension module "A" allows the extension of the mezzanine in the direction of the primary beams, without the need to dismantle the existing mezzanine.
The extension modules have very similar load capacity, dimensions and usable area to those of the initial module.
The extension module "B" allows the extension of the mezzanine in the direction of the secondary beams, without the need to dismantle the existing mezzanine.
The extension modules have very similar load capacity, dimensions and usable area to those of the initial module.
-4%
This metallic and removable mezzanine allows the storage of heavy loads (for example, pallets up to 500 kg, racks, stackers, safety gates and more useful elements) and enables the movement of hand pallet trucks on it. Its assembly is easy and there is no need of works.
Hinged door that demarcates the space for the movement and handling of loads. The purpose of the hinged door is similar to a railing which, by opening its doors, allows access to the adjacent space.
It eases the safe movement of loads between surfaces at different heights. Ideal for industrial environments, warehouses and commercial premises. When the door is closed it does not take up extra space.
Available according to the load width (W1): 150, 200 and 300 cm.
The hinged door with safety zone, made of steel, is a protection system for users, pallets and loads. Thanks to the positioning of its additional railings, a specific safety zone is created for loading and unloading. The perfect solution for industrial environments, warehouses, commercial and logistics premises.
Available according to the load width (W1): 150, 200 and 300 cm.
The sliding gate allows pallets and goods to be loaded and unloaded by forklift truck on platforms or mezzanines in industrial environments. Its telescopic system adapts to different widths and slides parallel to the railing without taking up space inside the platform.
This solution improves accessibility and safety, optimises the use of space and facilitates logistical operations without compromising protection. Its robust design ensures safe and controlled access, ideal for demanding industrial environments.
